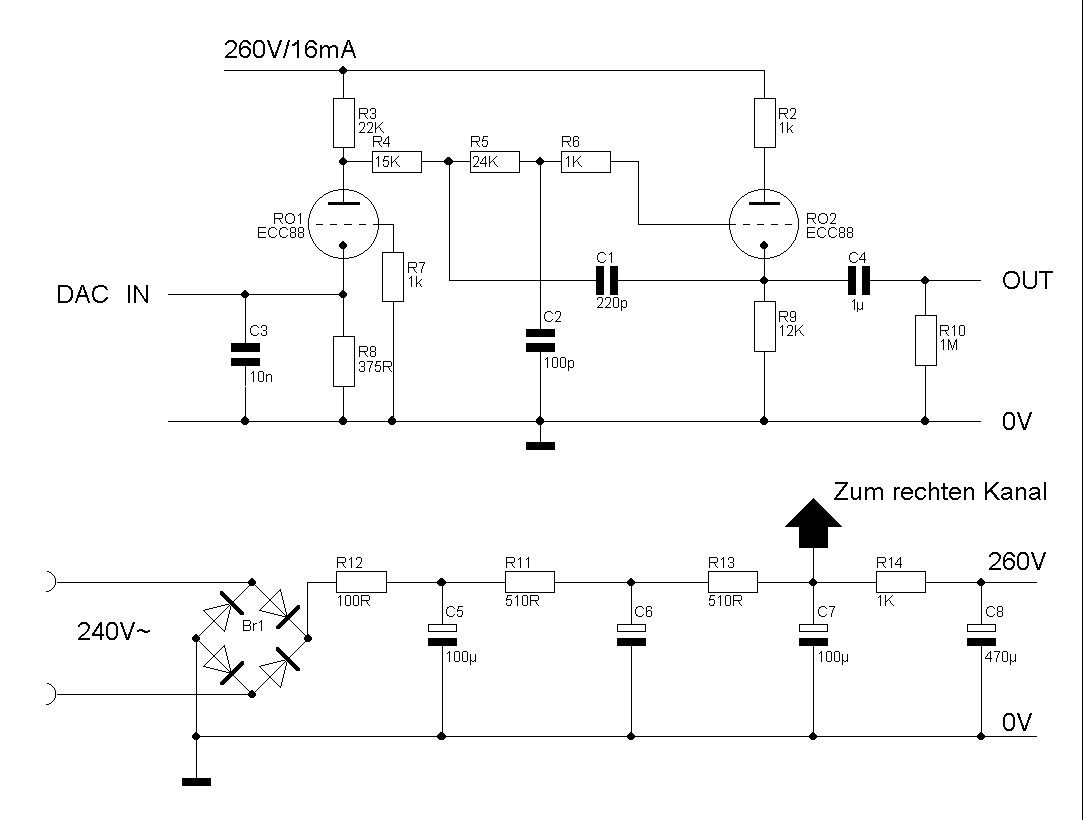

A proposed valve output stage for the TDA1545 (it needs to be modified for 2mA full scale current though - 2 resistors changed.
A proposed valve output stage for the TDA1545 (it needs to be modified for 2mA full scale current though - 2 resistors changed.
